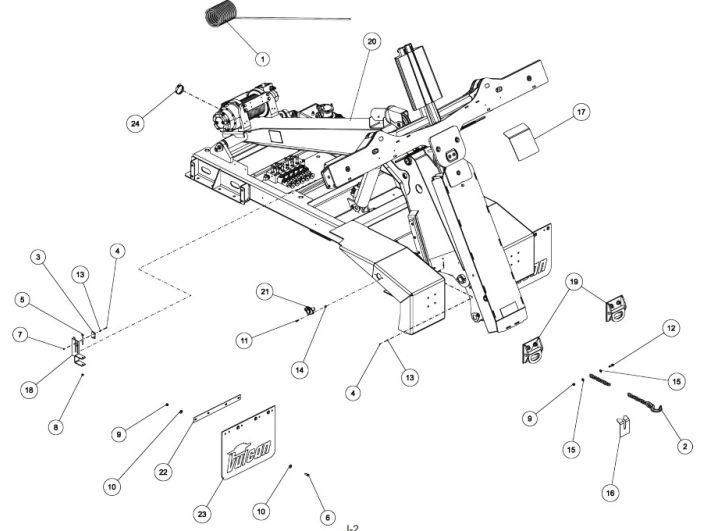

Wrecker Assembly

• These winch lines are made of the same high quality components as our self-locking eye hook winch lines, only the hook supplied is a self-locking swivel type.
• These are becoming very popular on car carriers.
• all-Grip Wire Rope Winchlines are superior to most other winchlines found in the market place due to the hand splice and swage sleeve (Flemish eye) end terminations.
• Each eye is protected by a steel liner (thimble) to guard against premature bearing point eye wear.
• Each winchline is supplied with a drop forged eye hook on one end.
• Spring loaded safety latches are standard equipment on our winchlines.
• Hooks are operated by depressing the trigger, allowing the hook to open.
• When a load is applied, these hooks "self-lock" and remain locked until the load is released and the trigger once again is pressed to open.
• All lines are right Regular lay and EIPS. Both fiber core and steel core winch lines are available
• Each line is packaged in a heavy duty box which makes handling and shipping by FedEx very convenient.
• * Minimum Break Strength
  • Apply to new unused wire rope assemblies.
  • Always use the size and type of wire rope specified by the wrecker or winch manufacturer.

3/8"   - WLL 4,253 LBS / MBS 15,100 LBS

7/16" - WLL 5,746 / MBS 20,400 LBS

1/2"   - WLL 7,492 LBS / MBS 26,600 LBS

9/16" - WLL 9,464 / MBS 33,600 LBS

5/8"   - WLL 11,605 / MBS 41,200 LBS

3/4"   - WLL 16,563 / MBS 58,800 LBS

Steel 3/8" flat washer with Zinc plating
