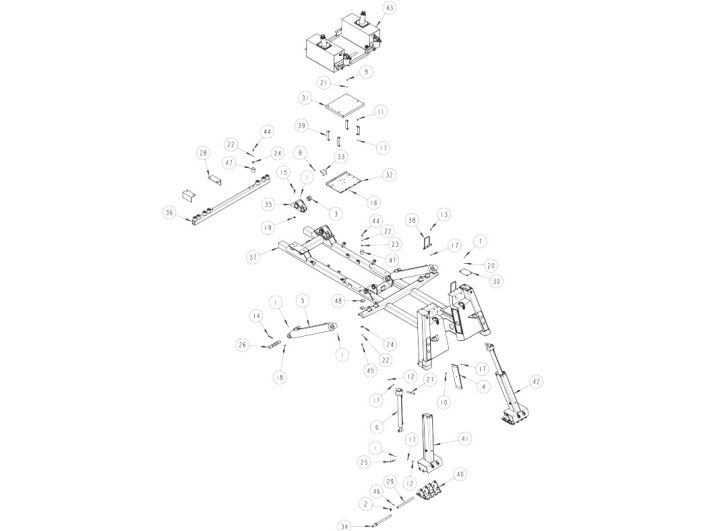

Subframe Assembly

2

0301861

LYNCH PIN-7/16"

$3.31

2

In stock

3

0302538

Miller Stinger Bushing

$169.99

2

In stock

4

0303089

Miller Ramp Pad 21" x 7"

$74.90

2

In stock

5

0307012

CYL HYD LIFT 6 BORE(BOOM LIFT 25-30T)

$4,399.99

2

In stock

6

0310013

Miller Cylinder, Rear Spade TI-S24023424PPBZ

$1,999.99

2

9

0400121

3/8-16X3/4 HHCS GR5 ZP

$5.67

4

In stock

10

0400128

Miller Flat Head Socket Screw 3/8"-16x1.25"

$6.99

10

In stock

12

0400139

Miller Socket Set Screw 3/8"-16 x 1.5"

$4.08

4

In stock

17

0400392

Miller Nylok Hex Nut, 3/8"-16

$6.89

24

19

0400431

NUT, 3/4-10 LOK GR8

$6.30

12

21

0400482

Miller 3/8" Helical Lockwasher (Zinc Plated)

$5.67

4

25

0705500

Shaft, Lower Spade

$30.46

2

26

0707118

Miller Boom Lift Cylinder Pin

$179.99

2

In stock

27

0707394

Miller Shaft, Upper Spade

$63.73

2

In stock

28

0710545

ANGLE - MOUNTING

$156.00

2

29

0715694

Miller Spade Pivot Pin

$110.78

2

In stock

30

0715796

Plate - Cover Spades

$15.95

2

31

0717066

COVER - VALVE

$249.00

1

33

0719122

PLATE - VALVE MTG

$0.00

1

34

0804334

Miller Pin, New Style Spade Flip Feet

$216.58

2

In stock

35

0312575

BRACKET-BOOM PIVOT (MACHINED)

$632.74

2

36

0806004

FRONT BODY MOUNT

$509.74

1

39

0807181

COVER, SUPPORT WELDMENT

$56.65

4

40

0807630

Miller Lower Spade Pad Weldment

$968.84

2

41

0807664

INNER SPADE WELD'T LH

$2,472.18

1

42

0807665

INNER SPADE WELD'T RH

$2,472.18

1

43

0907802

Reservoir kit

$3,565.99

1

46

9046354

Miller Spring Pin - 1/4 x 2-1/2

$3.96

2

In stock

47

9402970

Miller Body Mount Bushing

$47.82

14

In stock

48

942480011

PLATE,SLOT-SS REAR WASHER TBOX

$19.99

12
