Collins Hi-Speed 5.00x8 E-Rated G7X Dolly Set 5,000lbs - Red

$3,349.99

In stock

SKU

HSD-G7X

and CC Payments Accepted

Print this Page

Add to Wish List

Freight Shipping Required

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information

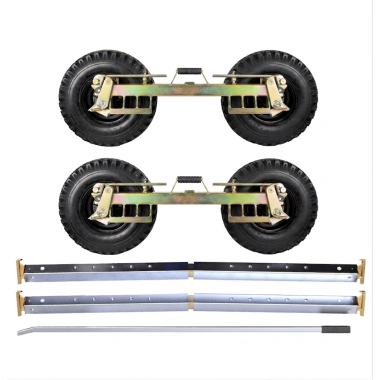

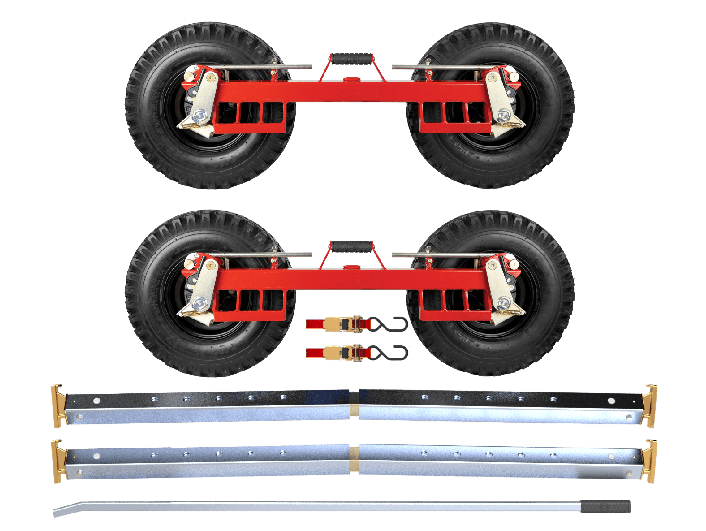

SKU HSD-G7X identifies the Collins Hi-Speed® G7X "Super Dolly" Set (equipped with T12 Hybrid Cross Rails), manufactured by Collins Manufacturing Corp.

Originally engineered for harsh Canadian winters and severe recovery conditions, the G7X is a heavy-duty 7th-generation tow dolly platform designed to haul heavy modern vehicles (including electric vehicles like Rivians, Cybertrucks, and Hummer EVs) over long-distance interstate routes and off-road environments.

Core Specifications

Overall Towing Capacity: 5,000 lbs
Speed Rating: 75 MPH (Highway/Interstate rated)
Total Set Weight: 228 lbs
Tire Size & Rating: 5.00×8 Load Range E (M speed rating)
Wheel Assembly: High-capacity steel wheels with bead-lock rims and solid steel hubs
Cross Rail System: Patented T12 Hybrid Cross Rails (aluminum outer tubes reinforced with steel inner rails; expandable up to 104" span)
Geometry: True Positive Camber design to prevent center bowing under full load

Key Features & Construction Highlights

Heavy-Wall Steel Construction: Uses 0.180-inch thick steel tubing (up from 0.120-inch on lighter models) to handle deep pothole impacts, ditch extractions, and rough terrain.
Steel Hubs & Wheels: Replaces standard aluminum components with heavy-duty steel to prevent warping, flexing, or cracking under maximum loads.
Weather & Cold Design: Finished in a signature Canadian Red corrosion-resistant powder coat, featuring tall trip handles for gloved operation and self-lubricating bushings.
Cross-Compatibility: Tires, wheels, and cross rail axles remain interchangeable with other Collins dolly models.
