Ramsey Winch 4Ton HD234 Wormgear

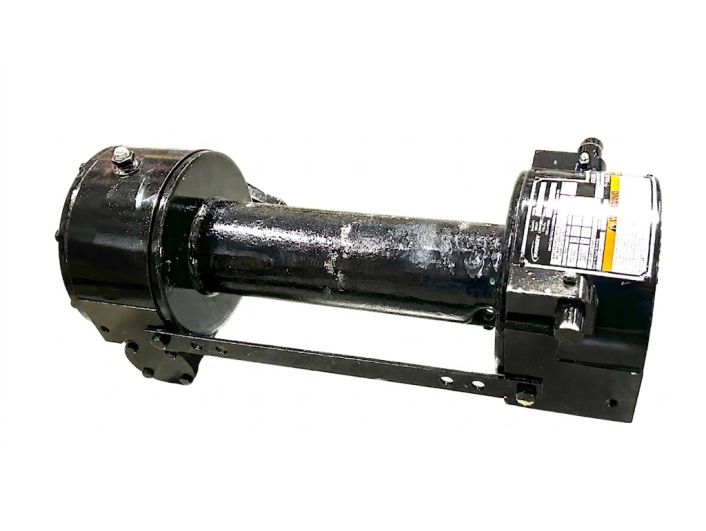

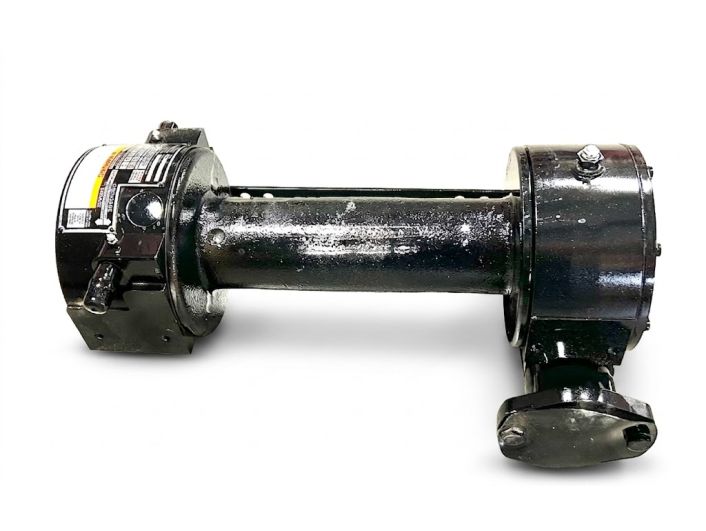

SKU 0308698 refers to the Ramsey HD234 4-Ton (8,000 lb) Hydraulic Worm Gear Winch Assembly.
Key Product Details
-
Manufacturer: Ramsey Winch
-
Model: HD234
-
OEM / Miller Industries Part Number:
0308698 -
Capacity: 4-Ton / 8,000 lbs
-
Primary Application: Standard equipment replacement winch used on Miller Industries car carriers (including Century, Champion, and Chevron car carriers/flatbeds).
Technical Specifications
| Feature | Specification |
| Rated Line Pull | 8,000 lbs (1st layer) |
| Gear Ratio | 34:1 Worm Gear |
| 1st Layer Line Speed | 28 ft/min |
| Hydraulic Flow Required | 15.0 GPM |
| Hydraulic Pressure Required | 2,375 PSI |
| Recommended Wire Rope | 3/8" (56 ft to 75 ft length standard) |
| Drum Size | 11.31" L x 7.25" F x 3.50" B |
| Weight | 65 lbs (without cable) |
| Shift/Clutch Type | Manual Shift / Lever Release |
Assembly & Ordering Information
-
Component Scope: SKU 0308698 typically refers to the winch gear housing assembly unit itself. In standard replacement ordering, it excludes the mounting frame, hydraulic winch motor, winch cable, or roller tensioner unless ordered as a complete assembly (such as Miller complete kit #0905076G).
-
Fitment Note: Designed for Miller Industries carrier subframes/beds; carrier serial numbers are recommended when verifying exact placement.
