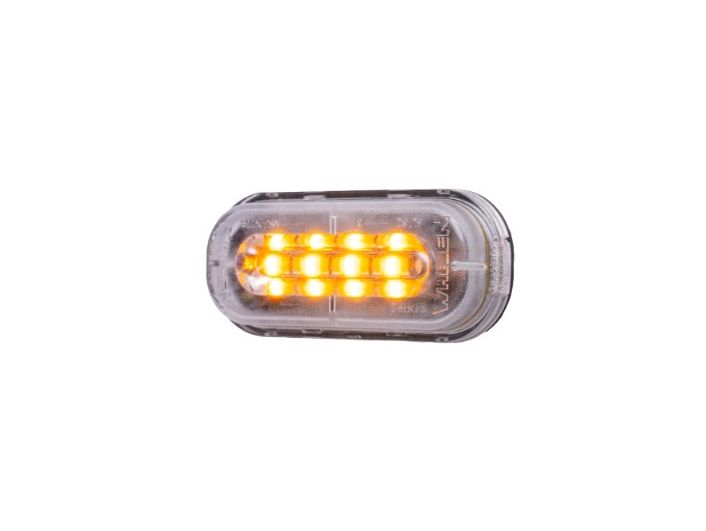

Whelen Mini T-Series Lighthead - Amber

$109.99

In stock

SKU

TMS0A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

More Information

Surface-Mounted Lightheads

Mini T-Series™

At just over 3.0” long and only 0.5” deep, the Mini T-Series™ is the smallest lighthead in the T-Series family, delivering high-performance warning and illumination in a highly compact design. Featuring Linear Super-LED® technology, the Mini T-Series provides bright, consistent light output, making it a versatile solution for emergency, utility, and work vehicles. The Mini T-Series lighthead is available SOLO™, DUO™, and TRIO™ models, each with multiple Scan-Lock™ flash patterns that will meet the needs of any situation. Built for durability, the Mini T-Series features hard-coated lenses and E Block™ technology to protect the lighthead from the elements, making it a reliable choice for harsh conditions.

Specifications

Please note: Not all specifications will apply to every model. Consult your sales representative to confirm specs.

Optics	Linear Super-LED®: SOLO™, DUO™ and TRIO™ models available
Technology	SmartLED®: Self-contained electronics power and flash LEDs without the need for external flashers, ballasts, or power supplies Dynamic Variable Intensity™ (DVI™): Gradually adjusts light intensity for improved nighttime visibility and safety E Block™: Patented watertight seal prevents moisture from entering the lighthead Steady-Lock™: Automatically set flash pattern to Steady when paired with a Core® system Scan-Lock™: Advanced flash pattern control Sync: Connect multiple Whelen devices for synchronized or alternating flash patterns Low Power models available
Flash Patterns	36 Scan-Lock™ flash patterns including Steady-Burn
Control	SmartLED®
Customization	Flanges: Black (default), Chrome or White Optional Additions: Grommet Mount Kit, License Plate Bracket
Construction	Hard-Coated Lenses: Resist environmental damage from sand, sun, salt, and road chemicals E Block™: Patented watertight seal prevents moisture from entering the lighthead Conformal Coated Electronics: Environmental, moisture, and vibration resistance
Mounting	Surface Screw Mount or Stud
Included Cables & Hardware	22 AWG 6.5" (16.51 cm) Pigtail
Certifications	SAE Standards SAE J595 SAE J845 Environmental IP67 Regulatory Compliance CA Title 13 R10 R65
Warranty	10-year Please see our warranty statement for more information here.
Voltage	10-30 VDC
Amps	SOLO™: 0.80 (peak), 0.50 (avg.) DUO™: 0.80 (peak), 0.50 (avg.) TRIO™: 0.35 (peak), 0.22 (avg.)
Size	Stud mount: Width: 2.35" (5.97 cm) Height: 1.03" (2.62 cm) Depth: 0.48" (12.19 mm) Stud mount with flange: Width: 3.34" (8.48 cm) Height: 1.49" (3.78 cm) Depth: 0.48" (12.19 mm) Surface mount: Width: 3.34" (8.48 cm) Height: 1.49" (3.78 cm) Depth: 0.54" (13.72 mm)
