3,000 LB Underlifts Gen 2

Other Schematics for this ( Century 10 Series GEN II Aluminum/Steel Carriers [0540039] [05/2023]) model:

Removable Tube Rail Sides
Aluminum Bed Assembly
Removable Blade Rails
Steel Bed Assembly Gen 2
Steel Bed Assembly Gen 2 Right Approach
Right Approach Removable Blade Rail Sides
Steel Bed Assembly Gen 2 SST
SST Removable Blade Rail Sides
IGUS Track and Bolt Kit-09020735
IGUS Track and Bolt Kit - 09020734
19-19.5ft Subframe Components Inboard Tilt Cylinders (2023)
21-22ft Subframe Components Inboard Tilt Cylinders (2023)
19-19.5ft Subframe Components Outboard Tilt Cylinders
21-22ft Subframe Components Outboard Tilt Cylinders (2023)
Dock Stabilizer
3,000 LB Wheel Lift Gen 2
Pivot L-Arm Receiver Group
Autogrip Wheel Lift
Autogrip Dock Stabilizer Wheel Lift
Autogrip II Components
Inboard Tilt Cylinders-Inboard Saddle
Outboard Tilt Cylinders-Outboard Saddle
Inboard Tilt Cylinders-Outboard Saddle
12 Gal. Inboard Oil Reservoir Group-763100G
14 Gal. Outboard Oil Tank Group-762110G
12 Gal. Inboard Oil Reservoir Group-0940440
12 Gal. Oil Reservoir Group - 09003530
13 Gal. Oil Reservoir Group - 0901275
12 Gal. Oil Reservoir Group - 09018450
Direct Mount Pump - 18 GPM
6-Spool Control Station
9-Spool Control Station
Remote Air Cylinders 6-Spool
Remote Air Cylinder 9-Spool
2 Air Valve Control Station
Body Lock Assembly-0940348
Ramsey HD234 Manual-Shift Winch Single Clutch Control
Ramsey HD234 Manual-Shift Winch Group With Dual Clutch Control
Ramsey HD234 Air-Shift Winch Group
Ramsey Winch - 0940421-0810AM Sierra Manual
Ramsey Winch-0940421-0810AM Sierra Manual Dual Handle
Ramsey Winch-0940421-0810AA Sierra Air
Ramsey 09023899-0810AM Omega Manual
Ramsey Winch-09023899-0810AM Omega Manual Dual Handle
Ramsey Winch-09023899-0810AA Omega Air Shift
DP Winch - DP Planetary Manual Shift
DP Winch - DP Planetary Air Shift
8K Comeup Winch - 0940283-0810AM
8K Comeup Winch - 0940283-0810AA
Warn Winch - Manual Free Spool
Warn Winch - Air Free Spool
LCG Retractable Ladder
Mudflap Components
Manual Slidewinder - 315200
Manual Slidewinder - 315204
Bed Mounted Cab Protector
Frame Mounted Pylon - 0940456-096 Conventional Base
Frame Mounted Pylon - 0940456-102
33" Aluminum Series 10 Toolbox - 377000
49" Aluminum Series 10 Toolbox - 378000
65" Aluminum Toolbox - 379000
36" Steel Toolbox
48" Steel Toolbox
60" Steel Toolbox - 174016023
Pintle Attachment Group
$1.00
In stock
SKU

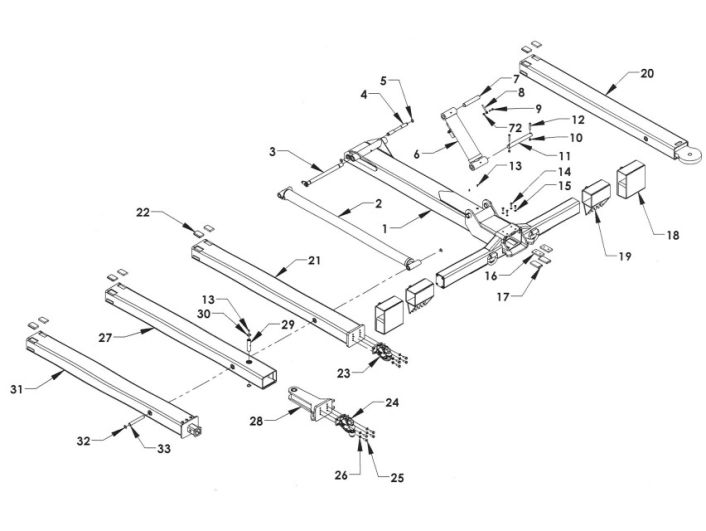

Century 10S 3,000 LB Underlifts Gen 2 (2023)

ID Part Number Part Name Price Recommended Quantity Quantity

View Detail

2

72A30054

CYLINDER - 3 x 54 W/L EXT -4K

$1,100.00

1

Call to Order

View Detail

3

0809411U

Miller Wheel Lift Pivot Hinge Pin 1.230

$106.99

1

- +

In stock


View Detail

4

729352

Miller Extend Cylinder Pin, Base End, LCG20 4K

$44.61

1

- +

In stock


View Detail

5

86100E

Miller Snap Ring for Pin 17190

$1.74

2

Call to Order

View Detail

6

0308372-1175

TILT CYLINDER-4 X 11.75 600-5311

$1,149.99

1

- +

In stock


View Detail

8

84680

Miller Drilled Rod End-Keeper Pin 10/12 Series, 3/8ths

$28.99

1

- +

In stock


View Detail

10

0400392

Miller Nylok Hex Nut, 3/8"-16

$6.89

3

Call to Order

View Detail

15

0400482

Miller 3/8" Helical Lockwasher (Zinc Plated)

$5.67

4

Call to Order

View Detail

16

63595H

Miller Nylatron Pad 1/2" x 2" x 4" Drilled

$23.21

4

- +

In stock


View Detail

17

63595

Miller Nylatron Pad 1/2" x 2" x 4"

$14.52

4

- +

In stock


View Detail

19

0809646-54

STABILIZER TUBE SPADE WLMT (5"x4")

$234.99

2

- +

In stock


View Detail

20

0811159

INNER BOOM WELDMENT-4K

$1,445.90

1

Call to Order

View Detail

21

10244P

Miller Inner Pintle Boom Weldment 12S 4K

$919.99

1

Call to Order

View Detail

22

65613

Miller LCG Nylatron Pad

$15.79

2

- +

In stock


View Detail

27

102404-PP

Miller Inner Pintle Boom Weldment 12S 4Klbs

$933.99

1

Call to Order

View Detail

29

143142PP

Miller Pivoting Cylinder Pin Ext

$80.99

1

Call to Order

View Detail

30

86125I

Miller Snap Ring Internal 1-1/4"

$1.24

2

Call to Order

View Detail

32

86100I

SNAP-RING 1 INTERNAL

$1.24

2

- +

In stock


View Detail

33

72940

Miller Extend Cylinder Pin, Rod End, LCG20 4K (0.980 x 6-5/8)

$12.42

1

- +

In stock
