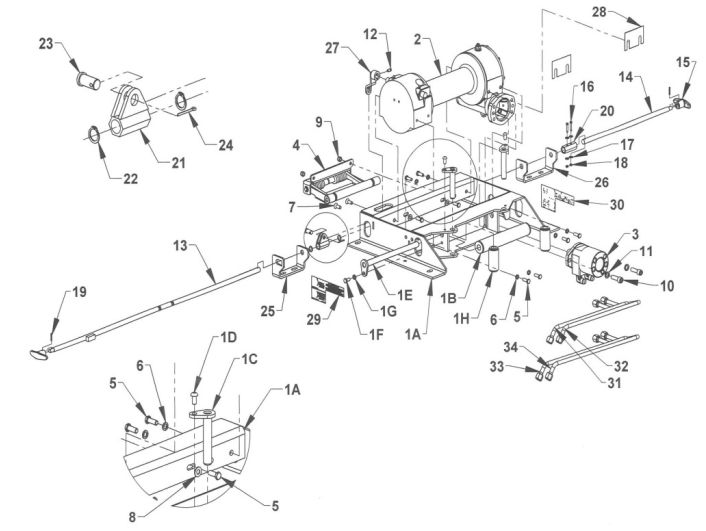

Ramsey HD234 Manual-Shift Winch Group With Dual Clutch Control

Other Schematics for this (Century 10 Series GEN II Aluminum/Steel Carriers [0540039] [05/2023]) model:

$1.00

In stock

SKU

Century 10S Ramsey HD234 Manual Winch Dual Clutch Control (2023)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Schematics Parts

View Detail

WINCH FRAME-8K RAMSEY WORM (frame only)

Part #: 0940425

$579.99

ID : 1 Recommended : 1

ID : 1

Recommended : 1

Call to Order

View Detail

RAMSEY H234 WINCH MOUNTING FRAME

Part #: 0811139

$447.26

ID : 1.1 Recommended : 1

ID : 1.1

Recommended : 1

Out of stock

View Detail

Miller Roller Assembly, 1.75" Diameter (Ramsey HD234)

Part #: 0940428

$95.33

ID : 1.2 Recommended : 1

ID : 1.2

Recommended : 1

- +

In stock

View Detail

Miller Pin - Vertical Roller Keeper

Part #: 0811142

$17.10

ID : 1.3 Recommended : 2

ID : 1.3

Recommended : 2

- +

In stock

View Detail

Miller Button Head Cap Screw (3/8"-16 x 3/4")

Part #: 0403004

$5.67

ID : 1.4 Recommended : 2

ID : 1.4

Recommended : 2

- +

In stock

View Detail

Miller Roller Guide Pin (Ramsey HD234)

Part #: 0811145

$28.80

ID : 1.5 Recommended : 1

ID : 1.5

Recommended : 1

- +

In stock

View Detail

Miller Screw, 3/8"-16 X 3/4" (HHCS, GR5, ZP)

Part #: 0400121

$5.67

ID : 1.6 Recommended : 1

ID : 1.6

Recommended : 1

- +

In stock

View Detail

Miller 3/8" Helical Lockwasher (Zinc Plated)

Part #: 0400482

$5.84

ID : 1.7 Recommended : 1

ID : 1.7

Recommended : 1

Call to Order

View Detail

Miller Side Roller Assembly, 1.75" Diameter

Part #: 0709877G

$22.00

ID : 1.8 Recommended : 2

ID : 1.8

Recommended : 2

- +

In stock

View Detail

Ramsey Winch 4Ton HD234 Wormgear

Part #: 0308698

$1,549.99

ID : 2 Recommended : 1

Feature	Specification
Rated Line Pull	8,000 lbs (1st layer)
Gear Ratio	34:1 Worm Gear
1st Layer Line Speed	28 ft/min
Hydraulic Flow Required	15.0 GPM
Hydraulic Pressure Required	2,375 PSI
Recommended Wire Rope	3/8" (56 ft to 75 ft length standard)
Drum Size	11.31" L x 7.25" F x 3.50" B
Weight	65 lbs (without cable)
Shift/Clutch Type	Manual Shift / Lever Release

ID : 2

Recommended : 1

- +

In stock

View Detail

Miller Winch Motor 4 Ton

Part #: 0320147

$639.99

ID : 3 Recommended : 1

ID : 3

Recommended : 1

- +

In stock

View Detail

Ramsey Roller Tensioner H234 (256181)

Part #: 03020146

$249.99

ID : 4 Recommended : 1

ID : 4

Recommended : 1

- +

In stock

View Detail

Miller Screw, 3/8-16 x 1 HHCS GR5 ZP

Part #: 0400126

$5.84

ID : 5 Recommended : 8

ID : 5

Recommended : 8

- +

In stock

View Detail

Miller 3/8" Helical Lockwasher (Zinc Plated)

Part #: 0400482

$5.84

ID : 6 Recommended : 6

ID : 6

Recommended : 6

Call to Order

View Detail

Miller 3/8" Flat Washer

Part #: 0400480

$3.89

ID : 8 Recommended : 2

ID : 8

Recommended : 2

Out of stock

View Detail

Miller Nylok Hex Nut, 3/8"-16

Part #: 0400392

$5.84

ID : 9 Recommended : 2

ID : 9

Recommended : 2

Call to Order

View Detail

Miller 1/2" Helical Lockwasher (Zinc Plated)

Part #: 0400491

$5.67

ID : 11 Recommended : 2

ID : 11

Recommended : 2

Out of stock

View Detail

Miller T-Handle

Part #: 0301532

$9.22

ID : 15 Recommended : 2

ID : 15

Recommended : 2

Out of stock

View Detail

DUAL CONTROL COUPLER

Part #: 07004182

$18.01

ID : 20 Recommended : 1

ID : 20

Recommended : 1

Out of stock

View Detail

Miller Ramsey Snap Ring 5/8" External

Part #: 86062E

$0.87

ID : 22 Recommended : 2

ID : 22

Recommended : 2

Out of stock

View Detail

Miller Cotter Pin (3/32" x 1")

Part #: 0400540

$5.66

ID : 24 Recommended : 1

ID : 24

Recommended : 1

Out of stock

View Detail

DUAL HANDLE CLUTCH CRANK ARM

Part #: 08002468

$66.18

ID : 27 Recommended : 1

ID : 27

Recommended : 1

Out of stock

View Detail

Ramsey 4TW Fluid Tube (SHORT) - S10 G2

Part #: 0752167-R

$38.99

ID : 31 Recommended : 1

ID : 31

Recommended : 1

- +

In stock

View Detail

Ramsey 4TW Fluid Tube (LONG) - S10 G2

Part #: 0752168-R

$38.99

ID : 32 Recommended : 1

ID : 32

Recommended : 1

- +

In stock

View Detail

Miller Ramsey 4TW Fluid Tube (S-S12 G2)

Part #: 0751974-R

$48.99

ID : 33 Recommended : 1

ID : 33

Recommended : 1

- +

In stock

View Detail

Miller Ramsey Fluid Tube L S12 G2

Part #: 0751975-R

$51.73

ID : 34 Recommended : 1

ID : 34

Recommended : 1

- +

In stock
