Muncie Pump, 15GPM, BI-ROT

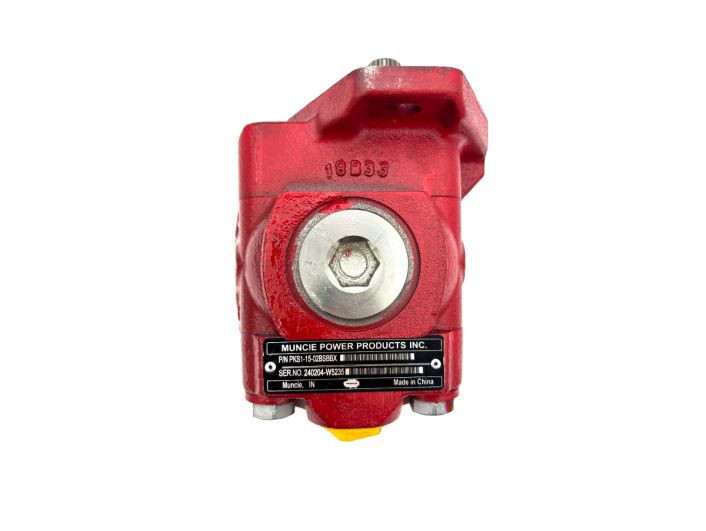

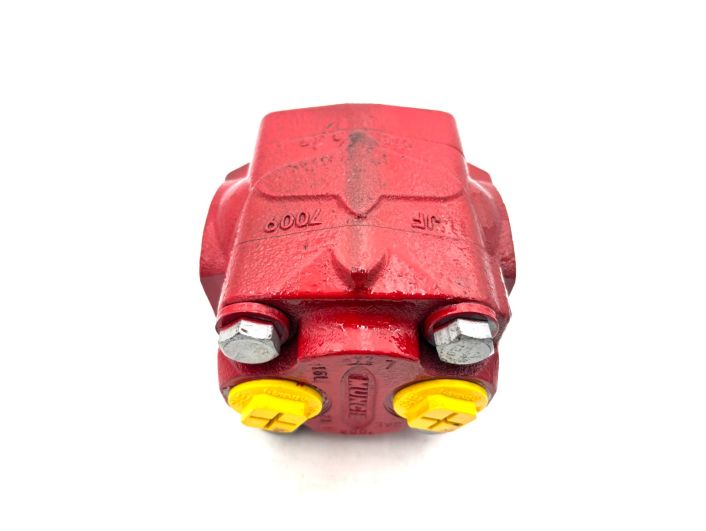

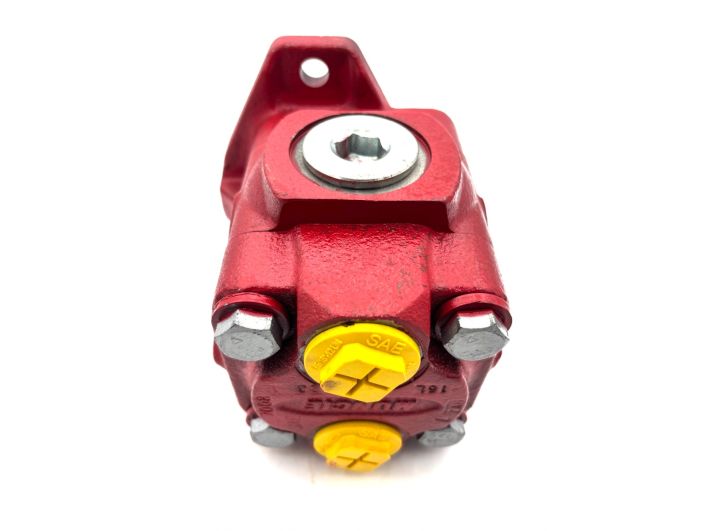

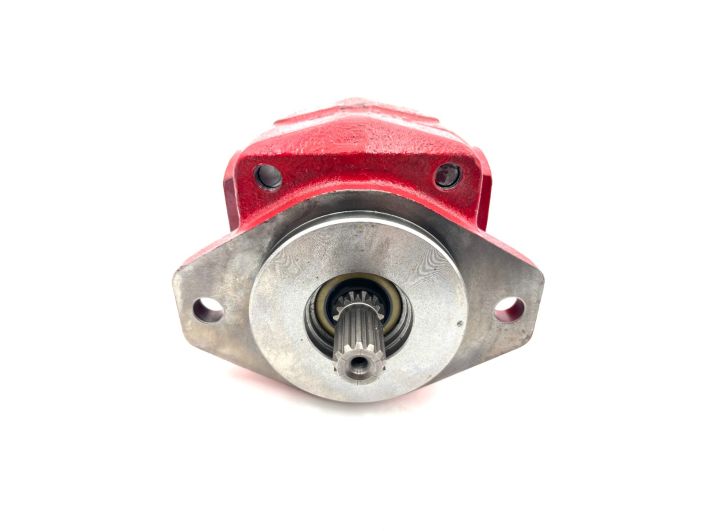

Muncie Hydraulic Gear Pump (PKS1-15-02BSBB)

Deliver dependable hydraulic force to your commercial towing and recovery gear with the Genuine Muncie Power Products PKS Series Hydraulic Gear Pump (Part #PKS1-15-02BSBB). Engineered for high-pressure performance, this bi-rotational PTO pump is built to handle continuous operation on car carriers, wreckers, and heavy equipment.

Key Features & Benefits

• Commercial Cast-Iron Construction: Built with high-grade, durable cast iron to withstand high operating pressures, thermal stress, and tough work site environments.

• Bi-Rotational Design: Features direct bi-rotational rotation to simplify installation and reduce complex equipment setup needs.

• Versatile 4-Port Configuration: Incorporates side and rear straight-thread O-ring ports for flexible hose routing in tight chassis spaces.

• Smooth & Quiet Power: Uses heavy-duty roller bearings and solid one-piece shafts to deliver steady fluid flow while minimizing operation noise.

Specifications

• Brand: Muncie Power Products

• Part Number / MPN: PKS1-15-02BSBB (PKS11502BSBB)

• Pump Series: PKS1 Series

• Displacement / Flow Rate: 15.06 GPM @ 1,000 RPM

• Max Operating Pressure: Up to 3,000 PSI

• Drive Shaft: SAE "B" 7/8" 13-Tooth Involute Spline (02 Shaft)

• Mounting Flange: SAE "B" 2-Bolt / 4-Bolt Pattern

• Rotation: Bi-Rotational

• Port Types: Straight Thread O-Ring Ports (Side & Rear)

• Housing Material: Heavy-Duty Cast Iron

• Condition: Brand New OEM
